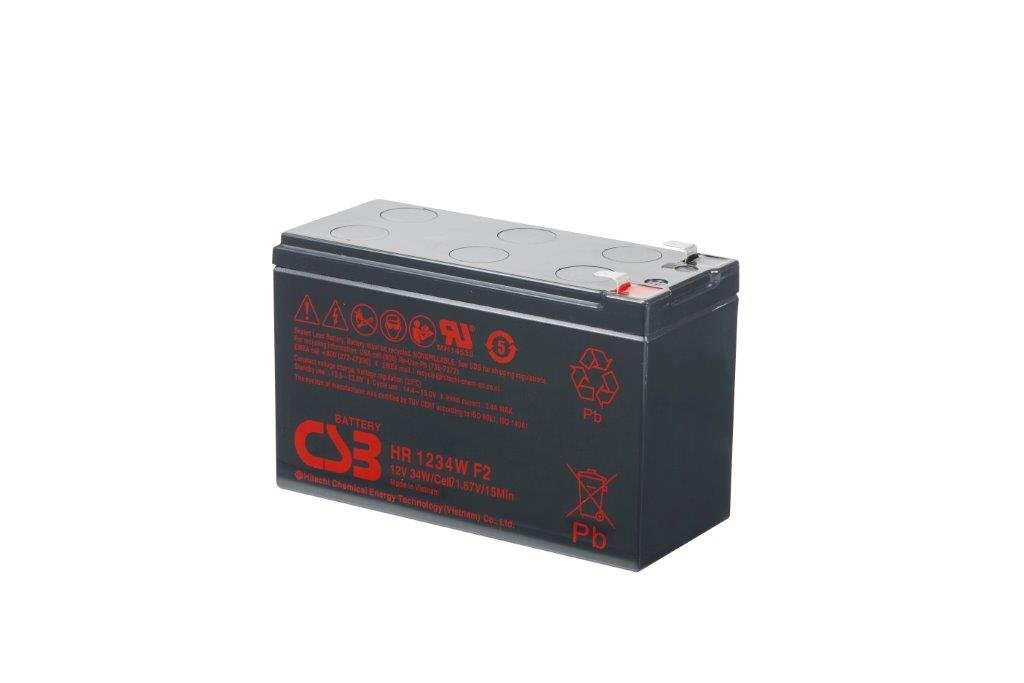

CSB HR 1234W 12V 9Ah Sealed Lead Acid Maintenance Free Battery with F2 Terminal
Original price was: USD 77.72.USD 50.52Current price is: USD 50.52.
Specification_x000D_
Cells Per Unit 6_x000D_
Voltage Per Unit 12 V_x000D_
Capacity 34W @ 15 minute-rate to 1.67V per cell @ 25°C (77°F)_x000D_
Weight Approx. 2.50kg. (5.51lbs.)_x000D_
Maximum Discharge current 100/130A (5sec.)_x000D_
Internal Resistance Approx. 19mΩ_x000D_
Operating Temperature Range Discharge：-15℃~50℃(5°F~122°F)_x000D_
Charge：-15℃~40℃(5°F~104°F)_x000D_
Storage：-15℃~40℃(5°F~104°F)_x000D_
Nominal Operating Temperature Range 25°C ± 3°C (77°F ± 5°F)_x000D_
Float charging voltage 13.5 to 13.8 VDC/unit Average at 25°C (77°F)_x000D_
Recommended Maximum Charging current limit 3.4A_x000D_
Equalization and Cycle Service 14.4 to 15.0 VDC/unit Average at 25°C (77°F)_x000D_
Self Discharge It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃_x000D_
Terminal F2-Faston Tab250_x000D_
Container Material ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.
| Specification |
| Cells Per Unit | 6 |
| Voltage Per Unit | 12 V |
| Capacity | 34W @ 15 minute-rate to 1.67V per cell @ 25°C (77°F) |
| Weight | Approx. 2.50kg. (5.51lbs.) |
| Maximum Discharge current | 100/130A (5sec.) |
| Internal Resistance | Approx. 19mΩ |
| Operating Temperature Range | Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F) |
| Nominal Operating Temperature Range | 25°C ± 3°C (77°F ± 5°F) |
| Float charging voltage | 13.5 to 13.8 VDC/unit Average at 25°C (77°F) |
| Recommended Maximum Charging current limit | 3.4A |
| Equalization and Cycle Service | 14.4 to 15.0 VDC/unit Average at 25°C (77°F) |
| Self Discharge | It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| Terminal | F2-Faston Tab250 |
| Container Material | ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request. |
| Weight | 2.5 kg |
|---|---|
| Dimensions | 15.09 × 6.48 × 9.43 cm |
| Amp Hour | 9 |
| Country of Origin | Netherlands, Europe |
| Manufacturer | CSB Energy Technology Co., Ltd |
| Battery Type | Valve regulated Lead Acid Maintenance Free Battery |
| Battery Volts | 12 Volts |
| Part No | 12V 9Ah |
| Brand | CSB |
| Warranty | 12 Months Limited Warranty against Manufacturers defects |
| Model | HR 1234WF2 (M7 size) |
