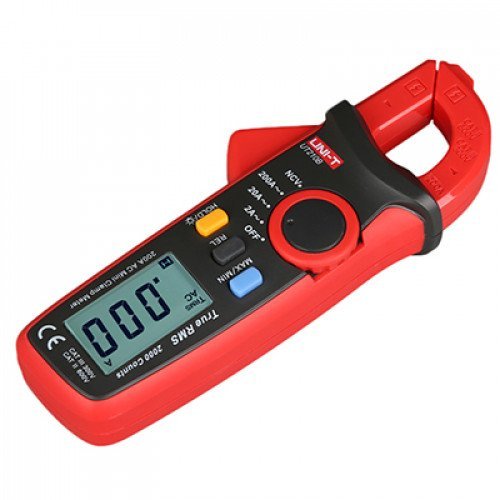

UNI-T UT210B Mini Digital Clamp Meter

Name: UNI-T UT210B Mini Digital Clamp Meter - Critical Power
SKU: UT210B
Price: 56.18 USD
Availability: InStock

Original price was: USD 196.61.Current price is: USD 56.18.

Delivery Time 3-4 weeks – Price does not include Freight – MOQ Applies

... people are viewing this right now

Guaranteed Safe Checkout Trust

Specifications of UT210 Series Mini Clamp Meters

Specifications Range UT210A UT210B UT210C UT210D UT210E
AC current (A) 200A Â±(2.5%+20) Â±(2.5%+20) Â±(2%+10) Â±(2.5%+8)
100A Â±(2.5%+5)
DC current (A) 200A Â±(2%+3)
100A Â±(2%+3)
AC voltage (V) 600V Â±(1%+3) Â±(1%+3) Â±(1%+3)
DC voltage (V) 600V Â±(0.7%+3) Â±(0.7%+3) Â±(0.7%+3)
Resistance (Î©) 20MÎ© Â±(1%+2) Â±(1%+2) Â±(1%+2)
Frequency (Hz) 60kHz Â±(0.1%+4)
Capacitance (F) 20mF Â±(4%+5) Â±(4%+5) Â±(4%+5)
Temperature -40~1000â„ƒ Â±(1%+3) Â±(1%+3)
-40~1832â„‰ Â±(1.5%+5) Â±(1.5%+5)
Features
Display count 2000 2000 2000 2000 2000
Continuity buzzer âˆš âˆš âˆš âˆš âˆš
Auto range âˆš âˆš âˆš
Jaw opening 16mm 16mm 17mm 17mm 17mm
Diode test Around 3.0V âˆš âˆš âˆš
General Characteristics
Power 1.5V battery (R03) x 2
Display 39.3mm x 26.5mm
Product color Red and grey
Product net weight UT210A/B: 150g (batteries included); UT210C/D/E: 170g
Product size UT210A/B: 158mm x 60mm x 33.5mm; UT210C/D/E: 175mm x 60mm x 33.5mm
Standard accessories Batteries, test leads (UT210C/UT210D/UT210E), point contact temperature probe (UT210C/UT210D)
Standard individual packing Gift box, English manual, carrying bag (UT210C/UT210D/UT210E)
Standard quantity per carton 40pcs
Standard carton measurement UT210A/B: 345mm x 245mm x 300mm; UT210C/D/E: 385mm x 345mm x 305mm
Standard carton gross weight UT210A/B: 8kg; UT210C: 14.8kg; UT210D: 8.2kg; UT210E: 13.6kg

Weight	13.6 kg
Dimensions	38.5 × 34.5 × 30.5 cm
Part No	180302180016X
Brand	UNI-T
Warranty	12 Months Warranty against Manufacturers defects
