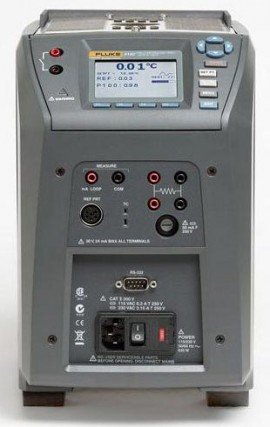

Fluke 9142-D-P-156 Field Metrology Well with D Insert (Model 9142-INSD) and Process Electronics, -25 to 150?C

Fluke 9142-D-P-156 Offers
It has a built-in gradient-temperature compensation (patent pending) that adjusts control characteristics to ensure stable performance in unstable environments.

Features

Lightweight, portable, and fast
Cool to -25°C in 15 minutes and heat to 660°C in 15 minutes
Built-in 2-channel readout for PRT, RTD, thermocouple, 4-20mA current
True reference thermometry with accuracy to ±0.01°C
On-board automation and documentation
Metrology performance in accuracy, stability, uniformity, and loadingFluke 9142-D-P-156 Offers
It has a built-in gradient-temperature compensation (patent pending) that adjusts control characteristics to ensure stable performance in unstable environments.

Features

Lightweight, portable, and fast
Cool to -25°C in 15 minutes and heat to 660°C in 15 minutes
Built-in 2-channel readout for PRT, RTD, thermocouple, 4-20mA current
True reference thermometry with accuracy to ±0.01°C
On-board automation and documentation
Metrology performance in accuracy, stability, uniformity, and loading

Fluke 9142-D-P-156 Specifications

Temperature Range at 23°C
-13 to 302°F (-25 to 150°C)

Display Accuracy
±0.2°C (full range)

Operating Conditions
0 to 50°C, 0 to 90% RH (non-condensing)

Immersion (Well) Depth
5.9in (150mm)

Resolution
0.01°

Display
LCD, °C or °F (user-selectable)

Size (H x W x D)
11.4 x 7.3 x 11.6in (290 x 185 x 295mm)

Weight
18lbs (8.16kg)

Power Requirements
100 to 115V (±10%), 50/60Hz, 635W; 230V (±10%), 50/60Hz, 575W

Computer Interface
RS-232 (9930 Interface-it control software included)

What’s included with the Fluke 9142-D-P-156

User Manual
Technical Manual on CD
Serial Cable
9930, Interface-it Software
Report of Calibration
Test Leads
Insert Removal Tool
6-Pin DIN Connector for Reference Probe
