D-Link DGS-1100-26MPP 24 Ports 10/100/1000Mbps PoE++ Smart Gigabit Switch with 2 combo 1000Base-T/ SFP ports, 518W PoE power budget, upto 75W on 21-24 ports
Part Number: DGS-1100-26MPP
Description
The DGS-1100 MP/MPP Series is a range of switches designed to meet the surveillance requirements of small, medium, and enterprise businesses. Support for high-powered Pan Tilt Zoom (PTZ) cameras, an automatic Surveillance VLAN, and 6 kV surge protection make the DGS-1100 MP/MPP Series ideal for IP surveillance deployments. A redesigned interface, a range of diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to your surveillance requirements.
Easy to Deploy
An interactive setup wizard removes the complexity from installing the
switch for the first time. It allows you to choose the web interface
mode (Standard or Surveillance), the IP address allocation method
(static or DHCP), and the administrator username and password. This
completes the initial setup of the switch and automatically configures
features such as Loop Detection, DHCP Snooping, SNMP and Surveillance
VLAN. An informative quick start guide shows you how to use the network
diagram, and a network overview is displayed on the next page. D-Link
and 3rd party devices are automatically detected and shown on the
network overview page for easy administration.
Surveillance Traffic Optimization
The DGS-1100 MP/MPP Series supports the automatic Surveillance VLAN
feature. This automatically detects surveillance devices and puts them
into the Surveillance VLAN, segmenting their traffic from the rest of
the network. The ensures security of the data, but also gives the
traffic a higher priority through the switch, reducing the chances of
the video freezing or being delayed on live streams. A single switch can
be used for both surveillance and data networks, removing the need for
dedicated surveillance hardware and reducing maintenance costs.
Intuitive Web Interface
A redesigned Surveillance interface makes surveillance features more
accessible than ever. The choice between Standard and Surveillance modes
can be made during switch set up, allowing the user to choose the
interface that best suits their requirements. A network overview shows
which devices are connected to which ports, and ONVIF device support
allows the switch to recognize both D-Link and 3rd party IP cameras and
Network Video Recorders (NVRs). With monitoring, management, and
troubleshooting tools built into a single interface, the DGS-1100 MP/MPP
Series provides everything you need to manage your surveillance
network.
Maximum Reliability
The DGS-1100 MP/MPP Series features 6 kV surge protection on all PoE
ports to help prevent damage to the network caused by power surges and
lightning strikes. Faulty electrical cabling, faulty network cabling,
and lightning strikes can cause damage to the switch and connected
devices. In-built surge protection of up to 6 kV can limit the damage to
the switch from both indoor and outdoor devices and network
connections. This increases network reliability, reduces repair costs
and removes the need for replacement hardware in the event of an
electrical surge or lightning strike.
Easy Troubleshooting
The DGS-1100 MP/MPP Series features Loopback Detection and Cable
Diagnostics to help network administrators find and solve network
problems quickly and easily. Loopback Detection detects loops in the
network, where multiple devices have been connected to each other and
there is a forwarding loop. The switch will identify the port causing
the loop and shut the affected port down to avoid network instability.
Cable Diagnostics can be used to remotely test the quality of copper
cables, recognize the cable type, and detect cable errors.
PoE Support
The DGS-1100 MP/MPP Series provides support for Power over Ethernet
(PoE), reducing deployment time for IP cameras, VoIP phones, and access
points. The DGS-1100-10MPP and DGS-1100-26MPP support IEEE
802.3bt,providing up to 75 watts on selected ports for the latest
high-powered Pan Tilt Zoom (PTZ) cameras. All switches in the DGS-1100
MP/MPP Series support IEEE 802.3af and 802.3at, providing up to 30 watts
per port. This, combined with high power budgets, ensure all of your
critical surveillance infrastructure
can be powered from a single switch.
The DGS-1100 MP Series Gigabit Smart Managed Surveillance PoE+ Switches consists of:
- DGS-1100-10MP: 10-Port Gigabit Max PoE Smart Managed Switch including 2 SFP ports (8 x PoE ports, 130W PoE budget, fan)
DGS-1100-10MPP: 10-Port Gigabit Max PoE Smart Managed Switch including 2 SFP ports (8 x PoE ports, 242W PoE budget, fan)
DGS-1100-26MP: 26-Port Gigabit Max PoE Smart Managed Switch including 2 comb ports (24 x PoE ports, 370W PoE budget, fan)
DGS-1100-26MPP: 26-Port Gigabit Max PoE++ Smart Managed Switch including 2 comb ports (24 x PoE ports 518W PoE budget, fan)
Features
Optimised for Video Surveillance
Surveillance optimised web interface
High PoE budget and PoE+ ports
Per-port 6 kV surge protection
ONVIF support
Auto Surveillance VLAN
Advanced Features
Bandwidth Control
IEEE 802.1Q VLAN traffic segregation
Port-based VLAN
IEEE 802.1p QoS
Voice VLAN
Green Technology
Link Status detection
IEEE 802.3az compliant
Time-based PoE
Management Features
Client-based utility or web-based GUI
Built-in SNMP MIB
Technical Specifications
Interface
Number of 10/100/1000BASE-TX ports
DGS-1100-10MP – 8 ports
DGS-1100-10MPP – 8 ports
DGS-1100-26MP – 24 ports
DGS-1100-26MPP – 24 ports
Number of SFP ports
DGS-1100-10MP – 2 ports
DGS-1100-10MPP – 2 ports
Number of combo ports
DGS-1100-26MP – 2 ports
DGS-1100-26MPP – 2 ports
PoE Supported Models (Standard(s)/Number of Ports/Maximum Power Budget)
DGS-1100-10MP (802.3af/802.3at/8 ports/130W)
DGS-1100-10MPP (802.3af/802.3at/802.3bt draft/UPoE/8 ports/242W)
DGS-1100-26MP (802.3af/802.3at/24 ports/370W)
DGS-1100-26MPP (802.3af/802.3at/802.3bt draft/UPoE/24 ports/518W)
Performance
Switch Capacity
DGS-1100-10MP – 20 Gbps
DGS-1100-10MPP – 20 Gbps
DGS-1100-26MP – 52 Gbps
DGS-1100-26MPP – 52 Gbps
Maximum Forwarding Rate
DGS-1100-10MP – 14.88 Mpps
DGS-1100-10MPP – 14.88 Mpps
DGS-1100-26MP – 38.69 Mpps
DGS-1100-26MPP – 38.69 Mpps
MAC Address Table Size
16K
Packet Buffer
1.5 Mbits
Flash Memory
16 Mbytes
Diagnostic LED Indicators
Power (Per Device)
Yes
Link/Activity/Speed (Per Port)
Yes
Physical & Environmental
Power Consumption (Maximum)
DGS-1100-10MP – 141.4W (PoE on)
DGS-1100-10MPP – 253W (PoE on)
DGS-1100-26MP – 387W (PoE on)
DGS-1100-26MP – 539W (PoE on)
Power Input
100 to 240 VAC, 50 to 60Hz internal universal power supply
Dimensions (W x D x H)
DGS-1100-10MP – 280 x 180 x 44 mm
DGS-1100-10MPP – 280 x 180 x 44 mm
DGS-1100-26MP – 440 x 290 x 44 mm
DGS-1100-26MPP – 440 x 290 x 44 mm
Weight
DGS-1100-10MP – 1.83 kg
DGS-1100-10MPP – 1.98 kg
DGS-1100-26MP – 3.81 kg
DGS-1100-26MPP – 3.9 kg
Ventilation
DGS-1100-10MP – 1 fan
DGS-1100-10MPP – 1 fan
DGS-1100-26MP – 2 fans
DGS-1100-26MPP – 2 fans
Heat Dissipation
DGS-1100-10MP – 570.51 BTU per hour
DGS-1100-10MPP – 1001.12 BTU per hour
DGS-1100-26MP – 1470.46 BTU per hour
DGS-1100-26MPP – 2079.35 BTU per hour
MTBF
DGS-1100-10MP – 291,575 hours
DGS-1100-10MPP – 1,719,951 hours
DGS-1100-26MP – 269,291 hours
DGS-1100-26MPP – 268, 289 hours
Temperature
Operating: -5° to 50°C (23° to 122°F)
Storage: -40° to 70°C (-40° to 158°F)
Humidity
Operating: 0% ~ 95% Non-condensing
Storage: 0% ~ 95% Non-condensing
EMI/EMC
FCC/IC, CE, VCCI, RCM, BSMI
Safety
cUL, UL, GS, CB
Software Features
VLAN
Port-based VLAN
802.1Q tagged VLAN
Auto Surveillance VLAN
Voice VLAN
Management VLAN
Asymmetric VLAN
VLAN Group
Supports 128 static VLAN groups
Max. 4094 VIDs
L2 Features
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Jumbo Frames up to 9216 Bytes
IGMP Snooping
IGMP v1/v2/v3 awareness Snooping
Supports 64 Groups
IGMP Snooping Querier
802.3ad Link Aggregation:
DGS-1100-10MP: Support 5 groups per device and 8 ports per group
DGS-1100-26MP: Support 13 groups per device and 8 ports per group
Loopback Detection Ethernet Ring Protection Switching
G.8032 ERPS
Cable Diagnostics
LLDP
Port Mirroring
One-to-One
Many-to-One
Statistics
Tx Ok
Tx Error
Rx Ok
Rx Error
Spanning Tree Protocol
802.1D STP
802.1w RSTP
Quality of Service (QoS)
802.1p Quality of Service
4 queues per port
Queue Handling
Strict
Weighted Round Robin (WRR)
Port-based Bandwidth Control (Rate Limiting)
Ingress: 8 Kbps
Egress: 64 Kbps
Security
D-Link Safeguard
Traffic Segmentation
Broadcast/Multicast/Unknown Unicast Storm Control
DoS Attack Prevention
SSL
Management
Web-based GUI (Supports IPv4/IPv6)
Surveillance Switch Mode
D-Link Network Assistant Utility
Green Technology
Power Saving by
Link Status
LED Shut-Off
Port Shut-Off
System Hibernation
Compliant with IEEE 802.3az Energy Efficient Ethernet
MIB/RFC Standards
- RFC 768 UDP
- RFC 791 IP
- RFC 792 ICMP
- RFC 793 TCP
- RFC 826 ARP
- RFC 1213 MIB II
- RFC1493 Bridage MIB
- RFC1907 SNMPv2 MIB
- RFC1215 MIB Traps Convention
- RFC2233 Interface Group MIB
- RFC2665 Ether-like MIB
- 802.1p MIB RFC4363
- ZoneDefense MIB
- Private MIB
- RFC 951 BootP client
- RFC 1542 BootP/DHCP client
- RFC 4363 802.1p
- RFC 2236 IGMP Snooping
| Brand | D-LINK |
|---|---|
| Warranty | 5 years manufacturers against manufacturers defects |
| Manufacturer | Datex Systems, Inc |
| Country of Origin | Taiwan |
Related Products
D-Link DWA-192/NA Wireless AC 1900 Dual Band (11a/b/g/n/ac) USB 3.0 Adaptor
Original price was: USD 75.75.USD 60.60Current price is: USD 60.60.
D-Link DAP-1665/MNA Wireless AC Wave2 1200 Dual Band (11a/b/g/n/ac) Access Point
Original price was: USD 91.53.USD 73.22Current price is: USD 73.22.
D-Link DAP-3666/UDL Wireless AC 1200 Wave 2 Dual Band (11a/b/g/n/ac) Outdoor PoE Access Point
Original price was: USD 423.46.USD 338.76Current price is: USD 338.76.
D-Link DIR-2660/MNA Wireless AC 2600 Wave2 MU-MIMO Dual Band (11a/b/g/n/ac) D-Link Wi-Fi Mesh enabled Wi-Fi Router
Original price was: USD 226.54.USD 181.24Current price is: USD 181.24.
D-Link DMG-112A/AU Wireless N 300 Repeater
Original price was: USD 16.25.USD 13.00Current price is: USD 13.00.
D-Link DEM-435XT 10GBASE-LRM SFP+ Transceiver (w/o DDM)
Original price was: USD 152.70.USD 122.16Current price is: USD 122.16.
D-Link DWA-582/NA Wireless AC1200 Dual Band (IEEE 802.11a/b/g/n/ac) PCI Express Adapter
Original price was: USD 41.34.USD 33.07Current price is: USD 33.07.
D-Link DMC-1910ST 10/100/1000BASE-T Gigabit Twisted-pair to 1000BASE-LX Gigabit
Original price was: USD 82.92.USD 66.34Current price is: USD 66.34.
D-Link COVR-2202/MNA Covr Intelligent AC2200 Tri Band Whole Home Mesh WiFi Kit – Pack of 2 units
Original price was: USD 406.97.USD 325.57Current price is: USD 325.57.
D-Link DIR-X5460/MNA Wireless AX 5400 Wi-Fi 6 Dual Band (11a/b/g/n/ac/ax) Router
Original price was: USD 332.41.USD 265.93Current price is: USD 265.93.

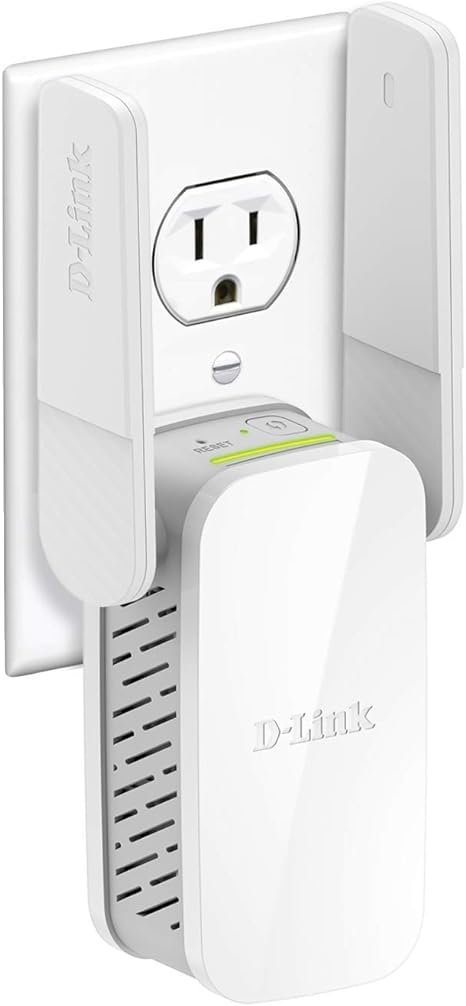

D-Link DAP-1610/BNA Wireless AC 1200 Dual Band (11a/b/g/n/ac) Range Extender
